Disc Brakes vs. Drum Brakes: A Comprehensive Comparison
Automev.Com Blog Post

Brake systems are one of the cornerstones of vehicle safety. There are two main types of brake systems used for safely slowing down and stopping vehicles: disc brakes and drum brakes. In this article, we will explore the working principles, advantages, and disadvantages of each system in detail and examine how they cater to different needs.

Objective
The goal of this article is to highlight the performance differences between disc brakes and drum brakes. By analyzing the functionality of both systems, we will discuss their advantages and disadvantages. This information will provide a better understanding of which system is more suitable for different vehicle types.

Disc Brakes

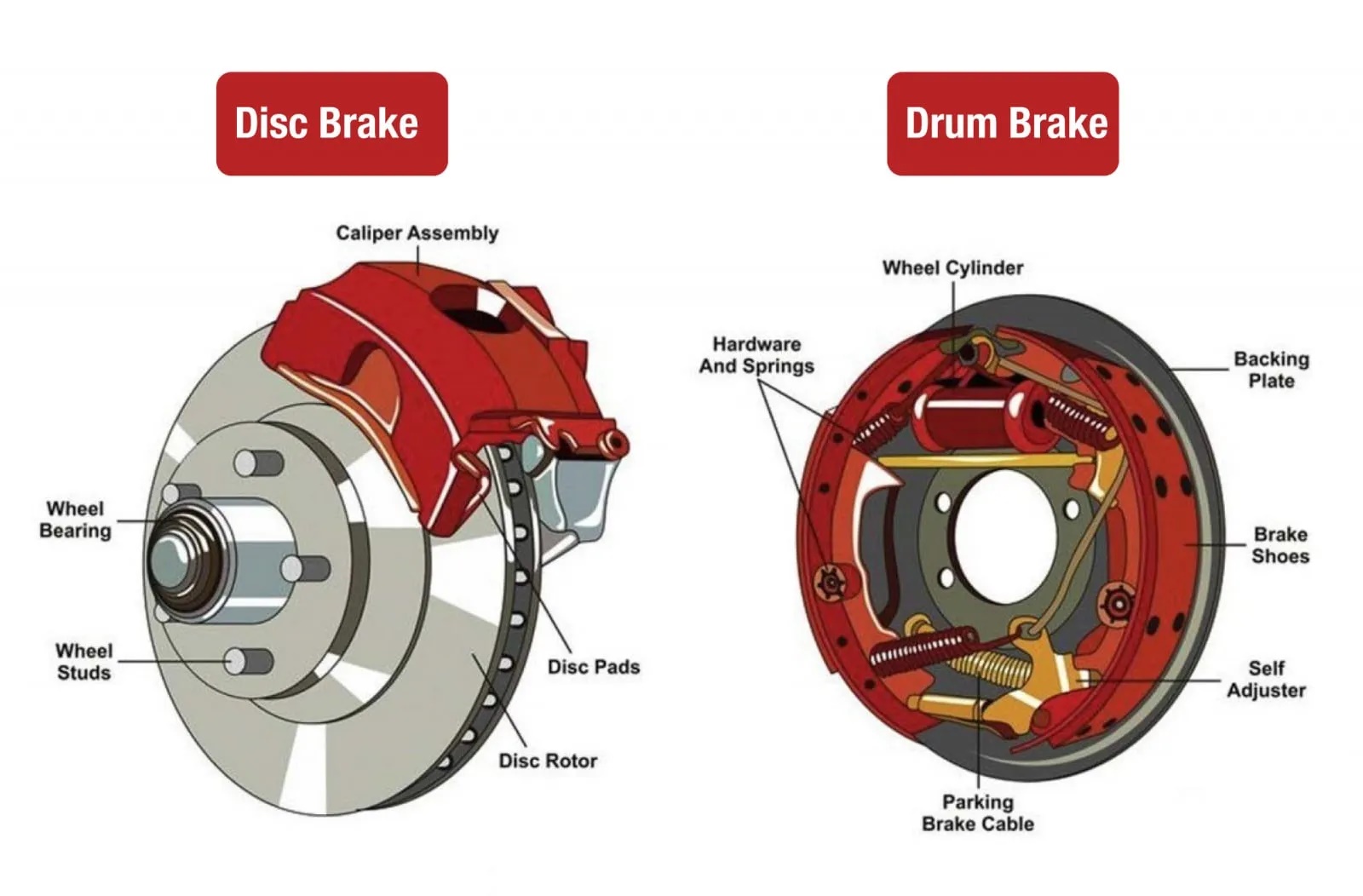

Modern disc brake systems mainly consist of the following components: calipers, pistons, brake pads, rotors, and tandem master cylinders.

Working Principle of Disc Brakes
When the brake pedal is pressed, hydraulic pressure is generated in the master cylinder.
This pressure is transmitted through the brake lines (typically hydraulic fluid lines) to the piston in the caliper.
Hydraulic pressure pushes the piston, which then presses the brake pads onto the rotor.
This process creates friction on the rotor, and the kinetic energy of the moving vehicle is converted into heat, slowing down the wheels.

Analysis of Disc Brakes
Disc brakes are commonly used on all wheels of modern vehicles. This system is highly effective in terms of performance, with the following advantages and disadvantages:

Advantages

• Weight Savings: Disc brakes are lighter than drum brakes, which provides better traction and fuel efficiency.
• Low Brake Fade: Disc brakes dissipate heat more efficiently, ensuring effective braking even with prolonged use.
• High Performance: With less wear and rapid cooling, disc brakes offer consistent performance during repeated braking.

Disadvantages

• Brake Dust Issues: Brake dust generated from the wear of brake pads can accumulate in the caliper and impede the system's proper functioning.
• Corrosion Risk: Due to their open design, disc brakes are more prone to corrosion under harsh weather conditions.

Drum Brakes
Drum brakes are typically used on the rear wheels of vehicles. These systems are suitable for the lighter rear end of the vehicle and are also commonly used in handbrakes. The design consists of a drum (the "drum") and the brake shoes inside the drum.

Working Principle of Drum Brakes
In drum brakes, hydraulic cylinders push the brake shoes into the rotating drum when the brake pedal is pressed.
The shoes create friction with the drum surface, slowing or stopping the vehicle's movement.

Analysis of Drum Brakes
Drum brake designs are simpler and cost less, but they have some performance limitations.

Advantages

• Higher Braking Power: Drum brakes can generate more braking power than disc brakes of the same size due to the self-servo effect, which allows the shoes to press harder against the drum surface.
• Longer Lifespan: With a larger friction surface, drum brakes offer a longer service life.
• Cost-Effectiveness: Manufacturing costs are lower compared to disc brakes.
• Less Heat Production: When used on rear wheels, drum brakes produce less heat.

Disadvantages

• Difficulty in Hard Braking: As the drum diameter increases, more pedal pressure is required.
• Overheating: At high temperatures, brake fluid may vaporize, negatively affecting brake performance.
• Sticking Issue: The brake shoes may stick to the drum surface, making it harder to release the brakes.

Historical Development
The evolution of brake systems has gone hand-in-hand with the development of the automotive industry.

• 1930s: Drum brakes were widely used due to their low cost and simple design.
• 1950s: Disc brakes were first introduced in race cars. These higher-performance systems gradually found their way into road vehicles.
• 1970s: Disc brakes integrated with ABS (Anti-lock Braking System) revolutionized vehicle safety.
• 2000s and Beyond: Disc brakes have continuously evolved with lighter materials, ceramic composite rotors, and electronic control systems.

Advancing Technology
Developments in Disc Brakes

• Ceramic Rotors: Lighter and more durable materials provide higher performance.
• Electronic Integration: Better brake control with systems like ABS, EBD, and ESP.
• Self-Cleaning Mechanisms: Designs that prevent the accumulation of brake dust.

Developments in Drum Brakes

• High-Temperature Resistance: New materials have improved the heat resistance of drum brakes.
• Compact Design: Smaller, lighter components provide advantages in handbrake systems.

Conclusion
Disc brakes and drum brakes offer different advantages and disadvantages. While disc brakes may be a better choice for performance-oriented vehicles, drum brakes are a more suitable alternative in terms of cost and durability.

• Disc Brakes: Light, high-performance, and more effective in repeated braking.
• Drum Brakes: Longer lifespan, cost-effective, and ideal for rear axles.

Choosing the right brake system for your vehicle depends on your usage needs and budget. At Automev.Com, we aim to enhance your safety and vehicle performance by offering high-quality components for both systems.
